Stator for Yamaha Mountain Max 600 & Venture 600

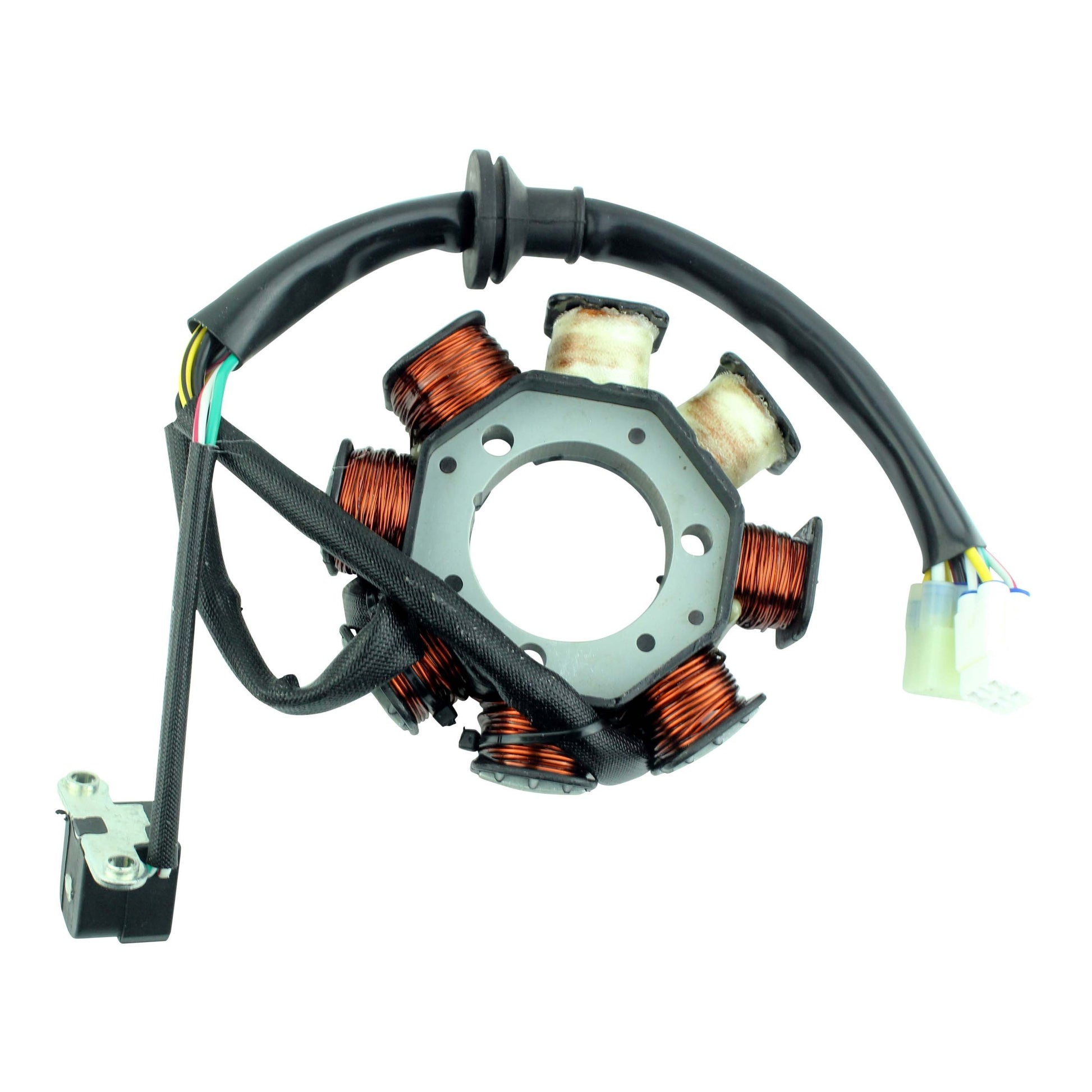

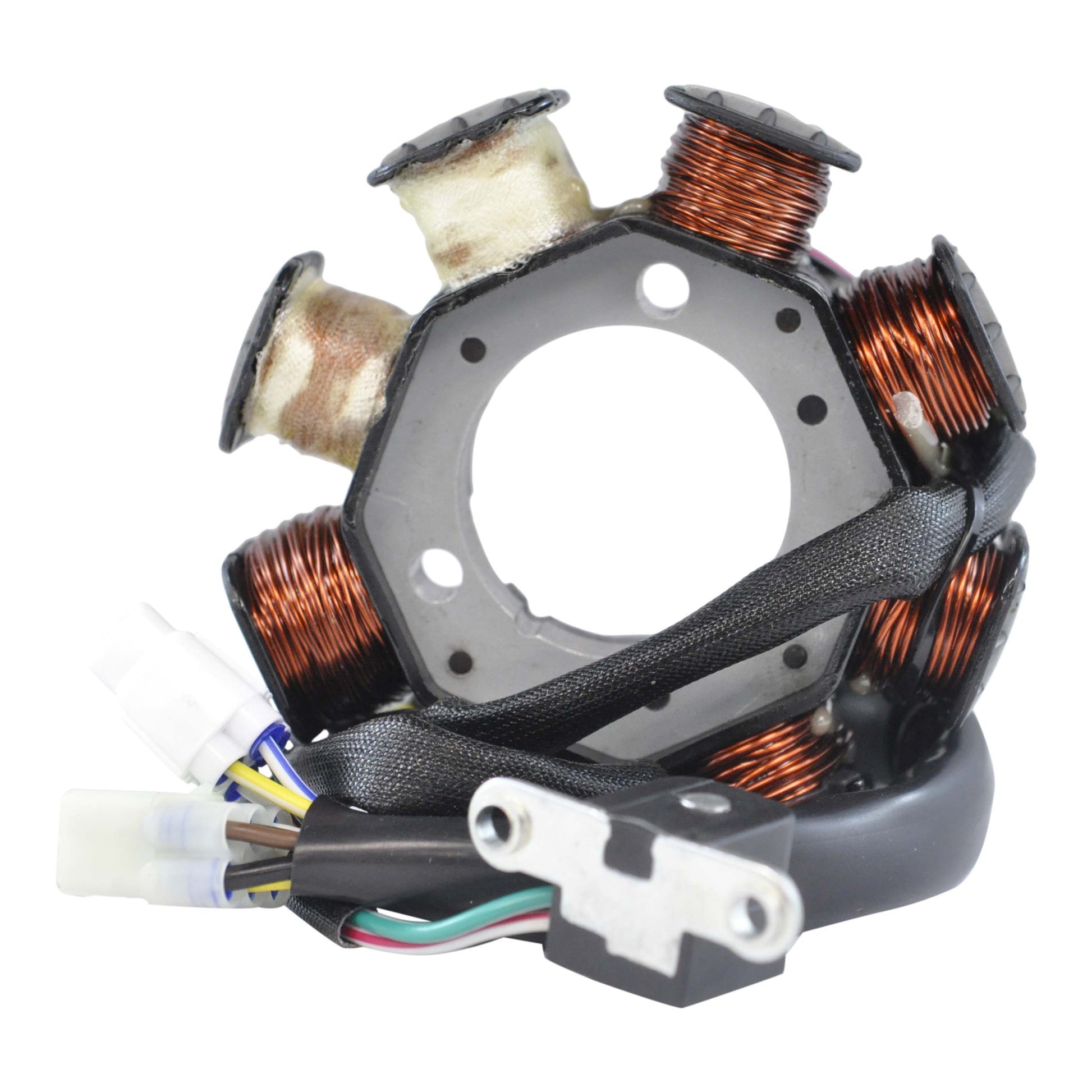

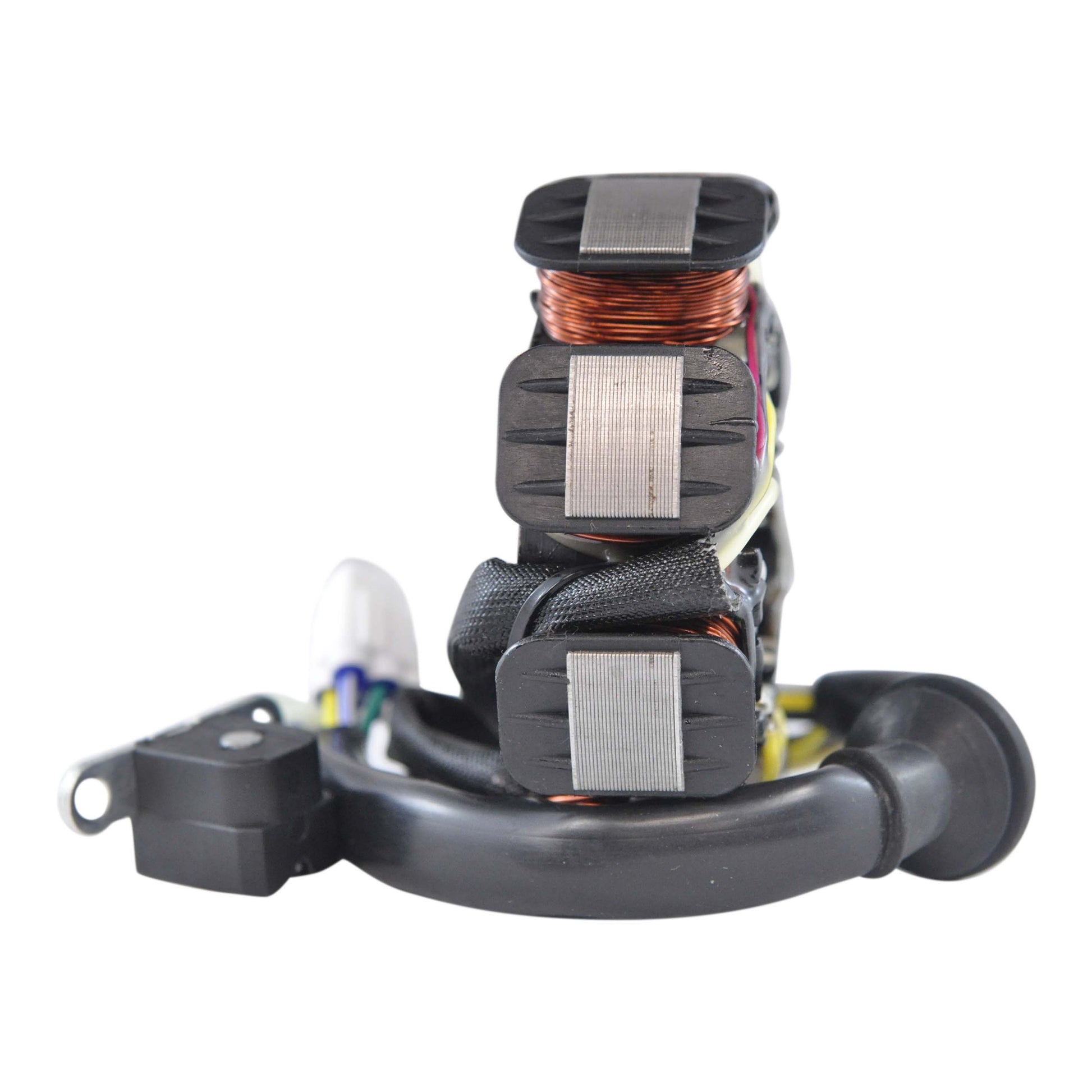

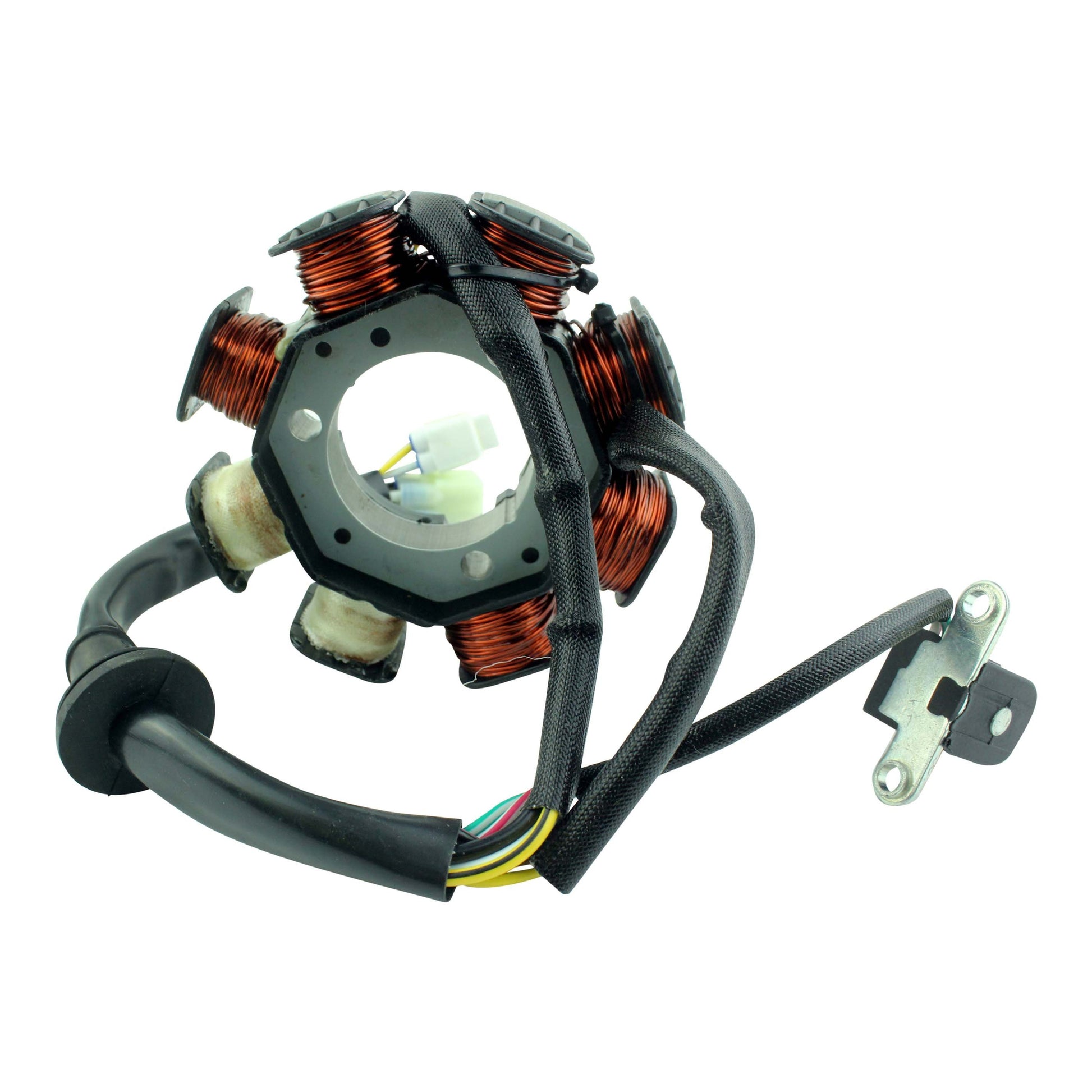

Direct replacement stator with pick-up pulsar coil - 1997 to 1999 - Part RM01257
A brand new stator supplied as a direct replacement for the original unit on the Yamaha Mountain Max 600 and Venture 600 built between 1997 and 1999. It is plug-and-play and a direct fit: the mounting pattern and the factory plugs match the original, so the swap is a straight exchange with no cutting, splicing or adapters.
Construction uses the highest grade lamination materials with highest grade copper windings rated to 200 degrees Celsius, so charging output stays consistent when the engine and the belly pan are hot. The pick-up pulsar coil is supplied already fitted to the assembly along with the connector and the rubber grommet, which means the ignition trigger is renewed at the same time as the charging windings rather than being carried over from the worn unit. Every stator is tested before it is shipped.
Key Features
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings rated to 200 degrees Celsius
- Pick-up pulsar coil supplied fitted
- Connector and rubber grommet included
- Tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 103 mm |
| Thickness | 14 mm |
| Wire length, stator to grommet | 75 mm |
| Wire length, grommet to plug | 200 mm |
| Pick-up coil wire length | 70 mm |
| Number of wires | 10 |
| Number of plugs | 2 |
| Number of pins | 10 |
| Alternator resistance (Yellow to Yellow/Black) | 0.4 ohms +/- 20% |
| Pick-up resistance (White/Red to White/Green) | 210 ohms +/- 20% |
| Source resistance (Blue/Red to Brown) | 250 ohms +/- 20% |
| Resistance (White to White/Black) | 0.2 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Mountain Max 600 | 1997-1999 |
| Yamaha Venture 600 | 1997-1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8CW-85510-00-00 | Yamaha |
Frequently Asked Questions
Will it fit without modification?

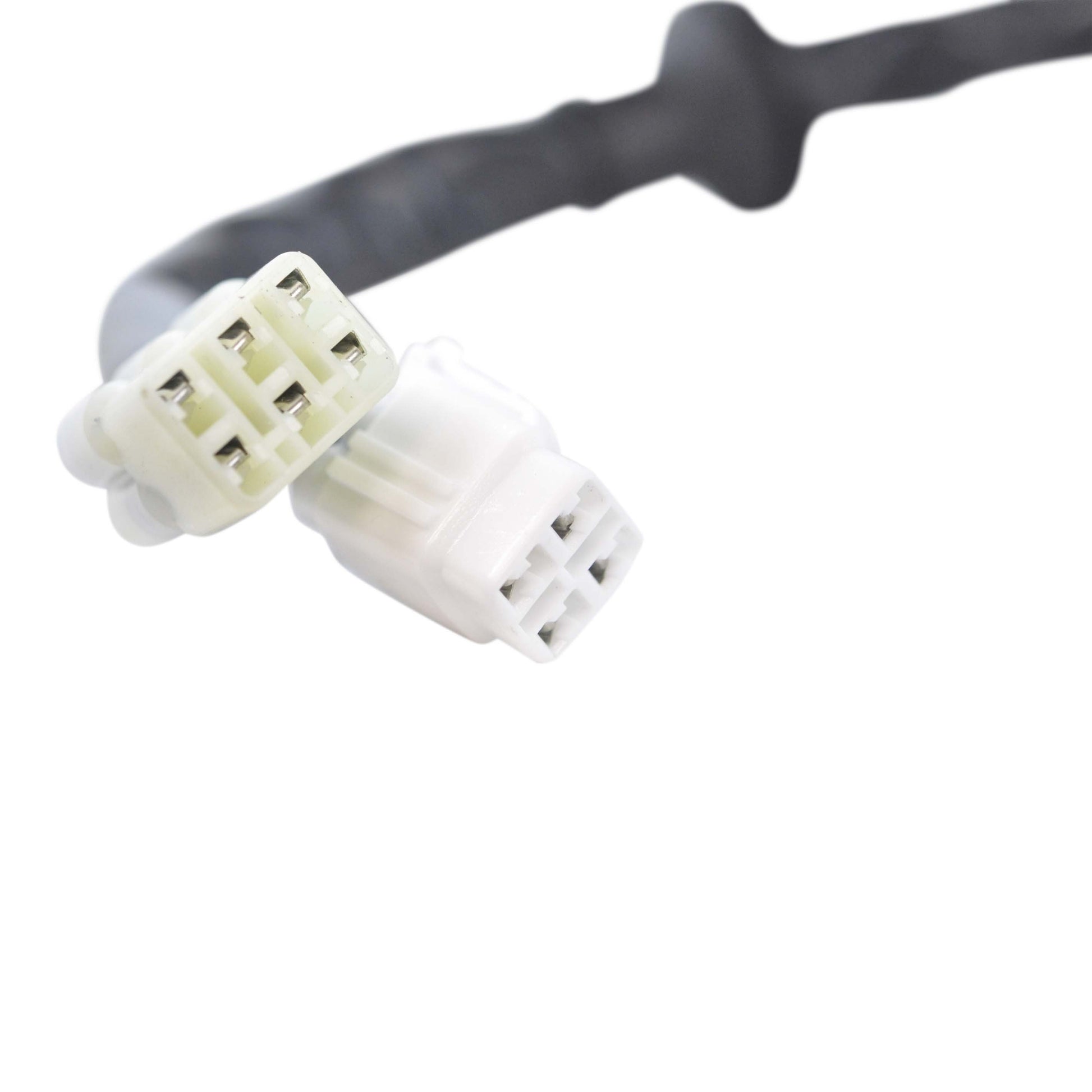

Yes. It is a direct fit for the original stator on the listed models and uses the same two factory plugs across ten pins, so no cutting, splicing or drilling is required.
What is in the box?
The stator assembly, the pick-up pulsar coil, the connector and the rubber grommet.
How do I confirm the old stator is the problem?
A flat battery after a full day's running, headlights that dim or surge with engine speed, and weak or intermittent spark all point at the stator. Test the old unit with a multimeter and compare against the table above: 0.4 ohms yellow to yellow/black, 210 ohms across the pick-up, 250 ohms on the source circuit and 0.2 ohms white to white/black, each within 20%. An open circuit, a short to the laminations, or a reading well outside those bands confirms it.
Is the pick-up coil included or do I move mine across?
It is included and already fitted, with 70 mm of wire from the coil to the grommet, so there is no need to transfer the pick-up from your original stator.
