Stator for Yamaha TMAX 500 2001-2011 - Replaces 4B5-81410-00-00
Stator for Yamaha TMAX 500 2001-2011 - Replaces 4B5-81410-00-00
SKU:RM01275
Free shipping over £150. Terms apply
Couldn't load pickup availability

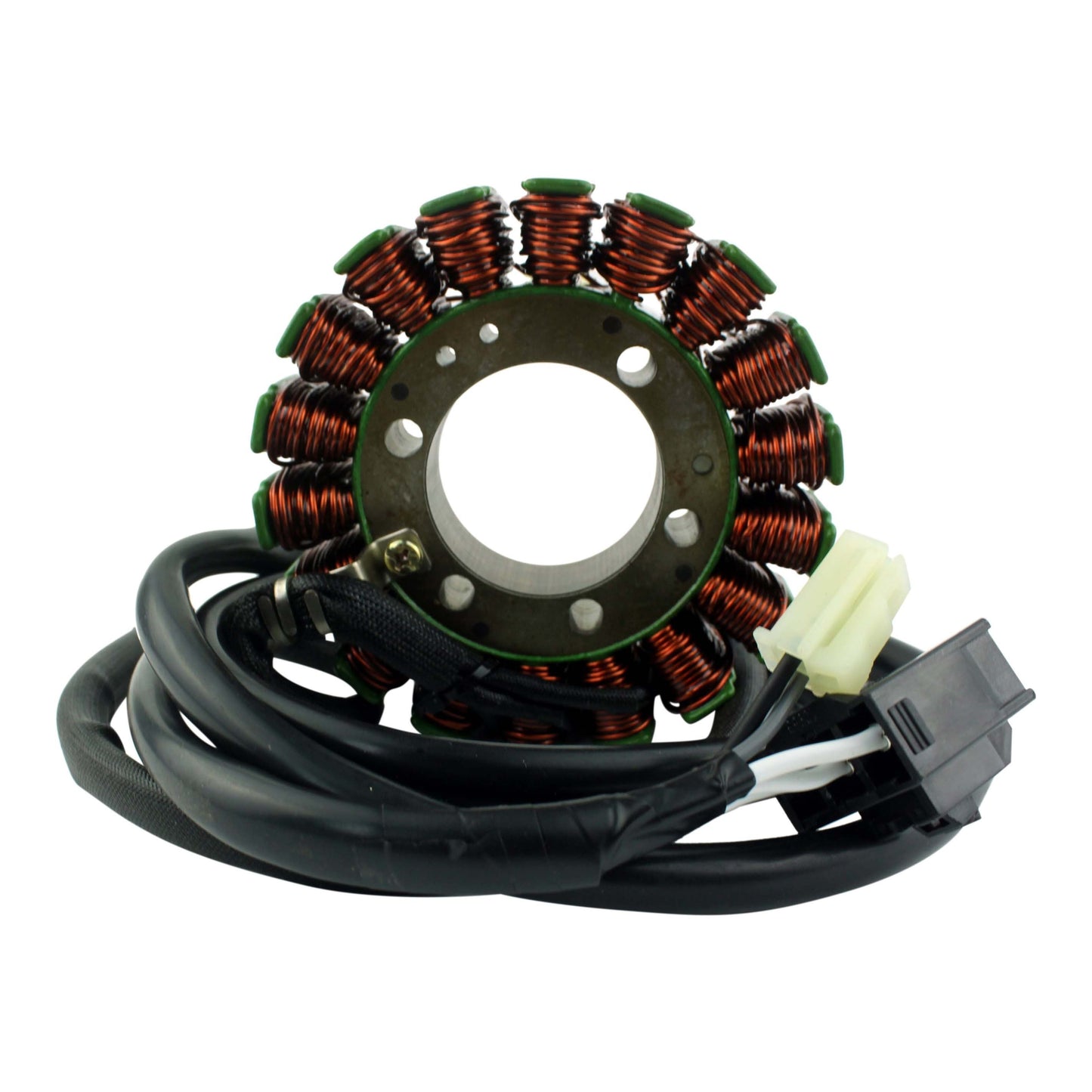

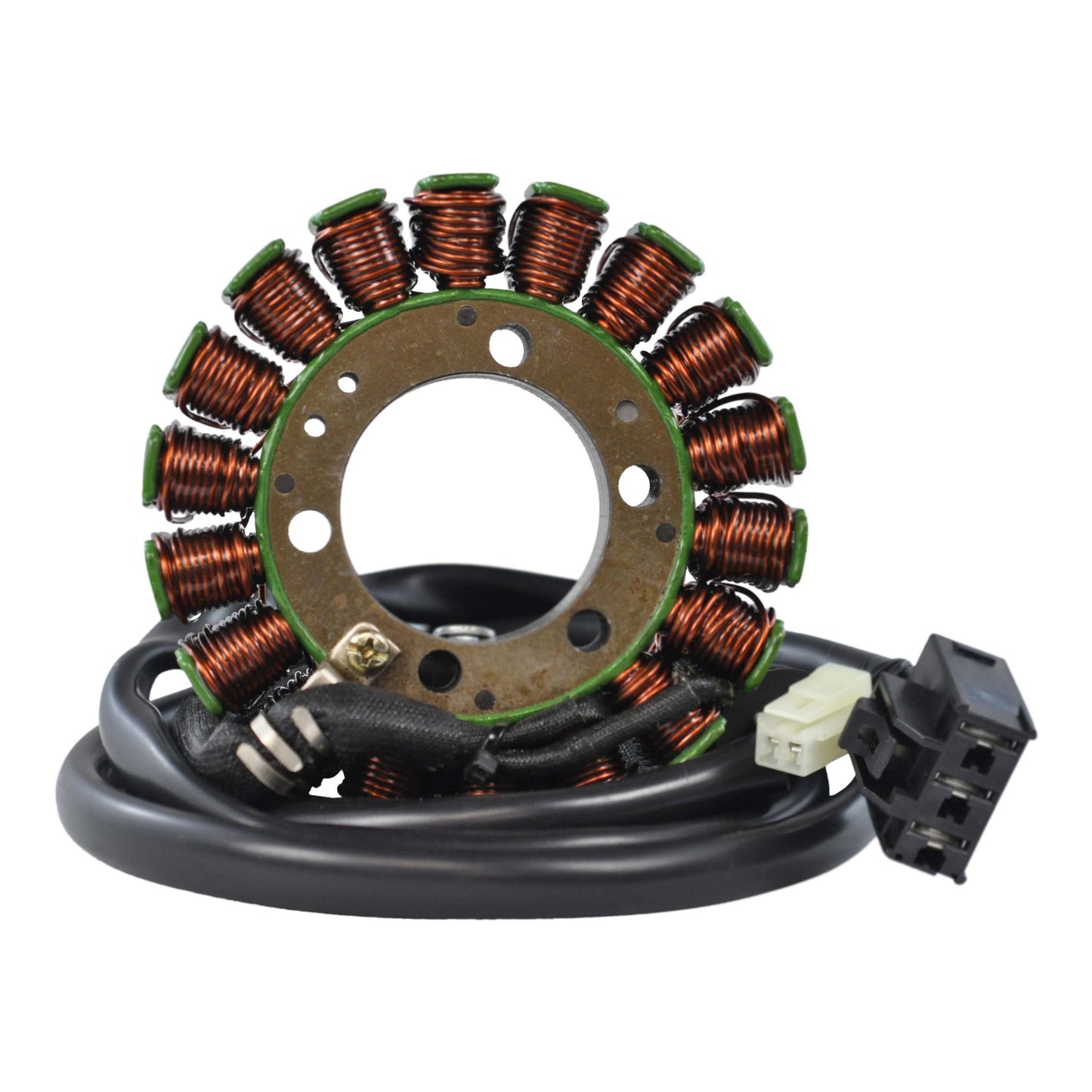

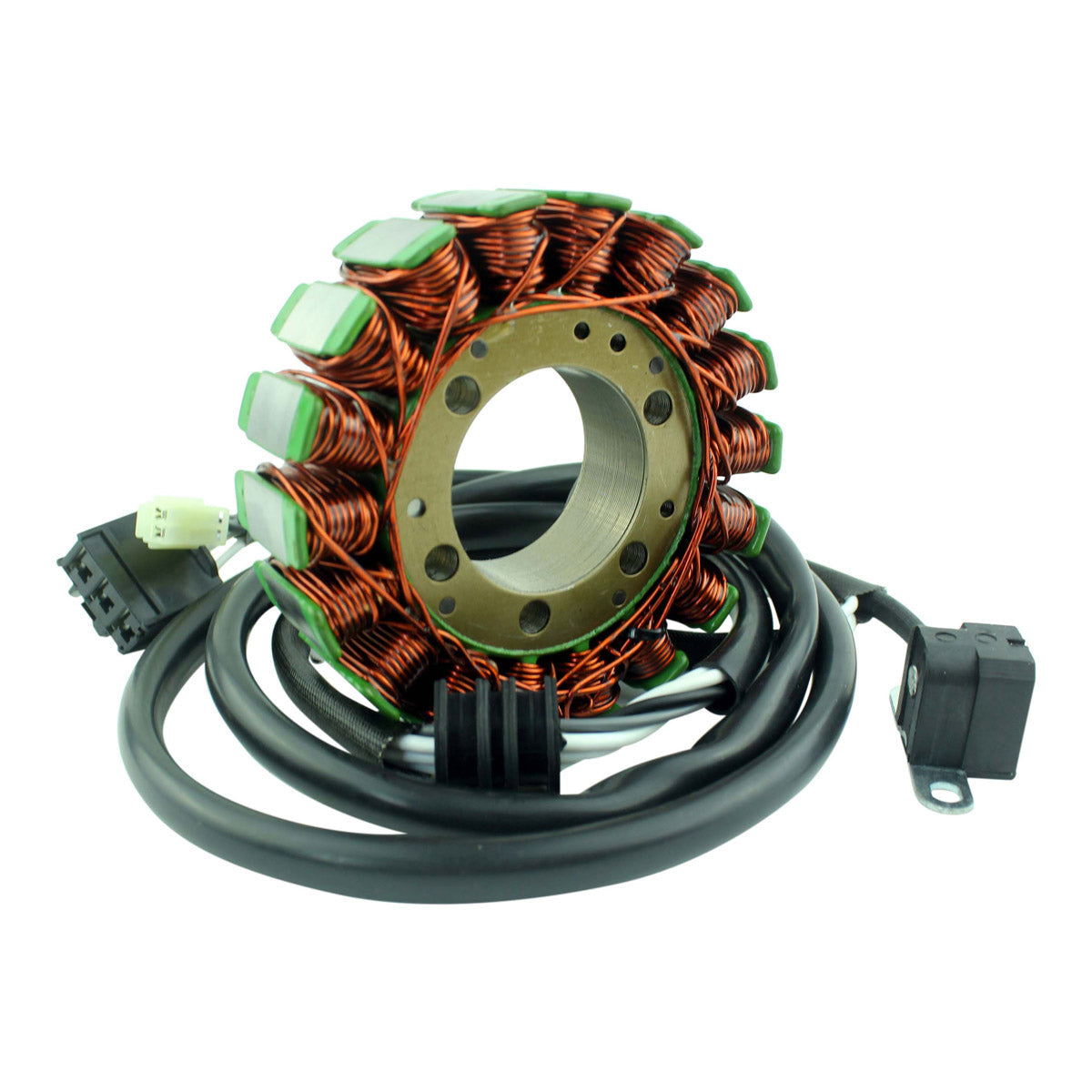

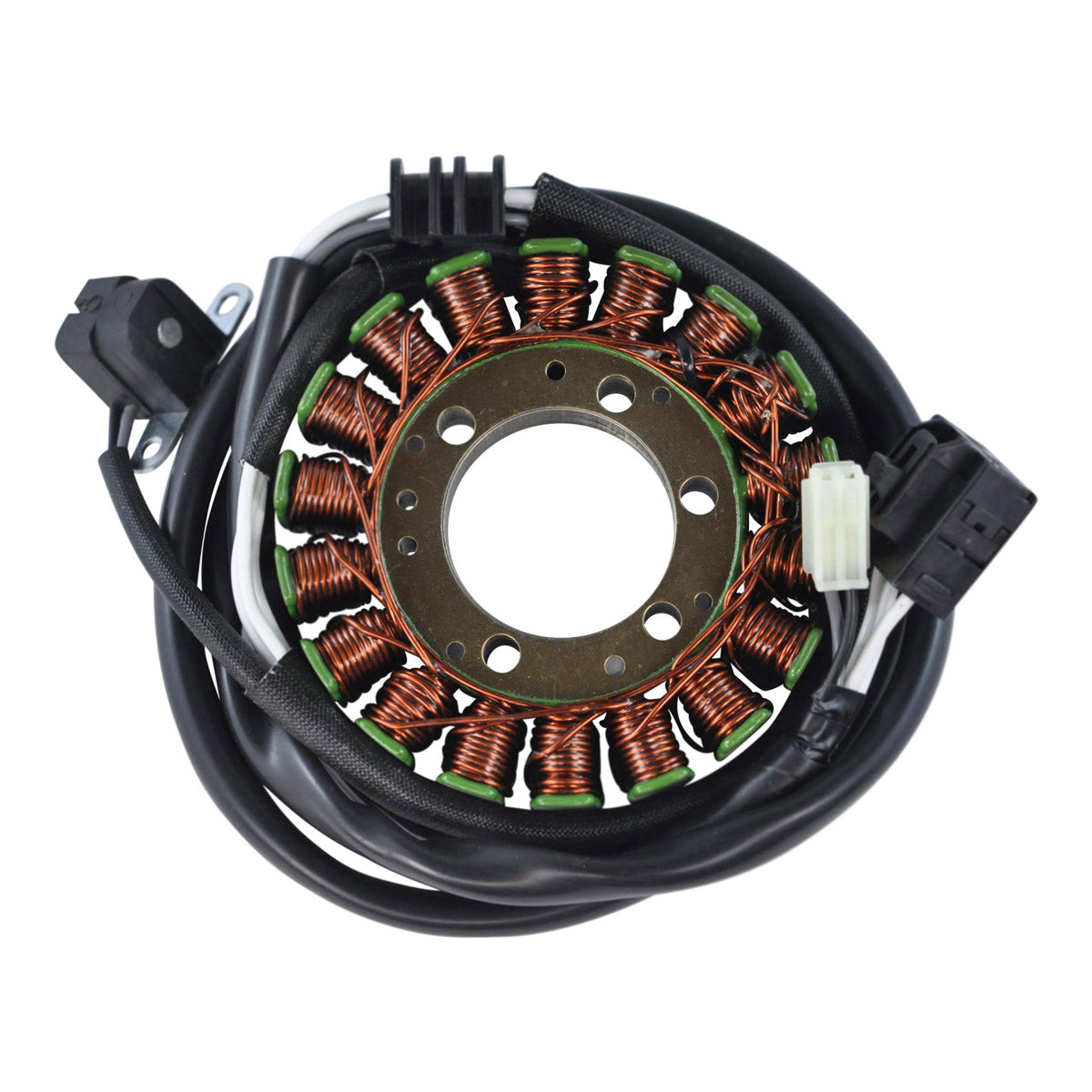

Generator Stator with Pick-Up Pulsar Coil for Yamaha TMAX 500
Yamaha TMAX 500, 2001-2011 · 20% more output over stock
A brand new generator stator for the Yamaha TMAX 500, supplied complete with the pick-up pulsar coil so the whole assembly can be changed in one operation. It is a direct replacement for the original unit - plug-and-play, direct fit, and it works with all other OEM components on the bike.
This stator produces 20 percent more output over stock, which helps on a scooter carrying heated grips, auxiliary lighting or a topbox loom. Highest grade lamination materials and highest grade copper windings resistant to 200 degrees Celsius are used throughout, and the connectors and rubber grommet are supplied fitted. Every unit is tested before it ships. Part number RM01275.
Key Features
- Brand new generator stator, not a rewound core
- 20% more output over stock, works with all other OEM components
- Direct replacement to your original unit - plug-and-play, direct fit, easy installation
- Pick up pulsar coil included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

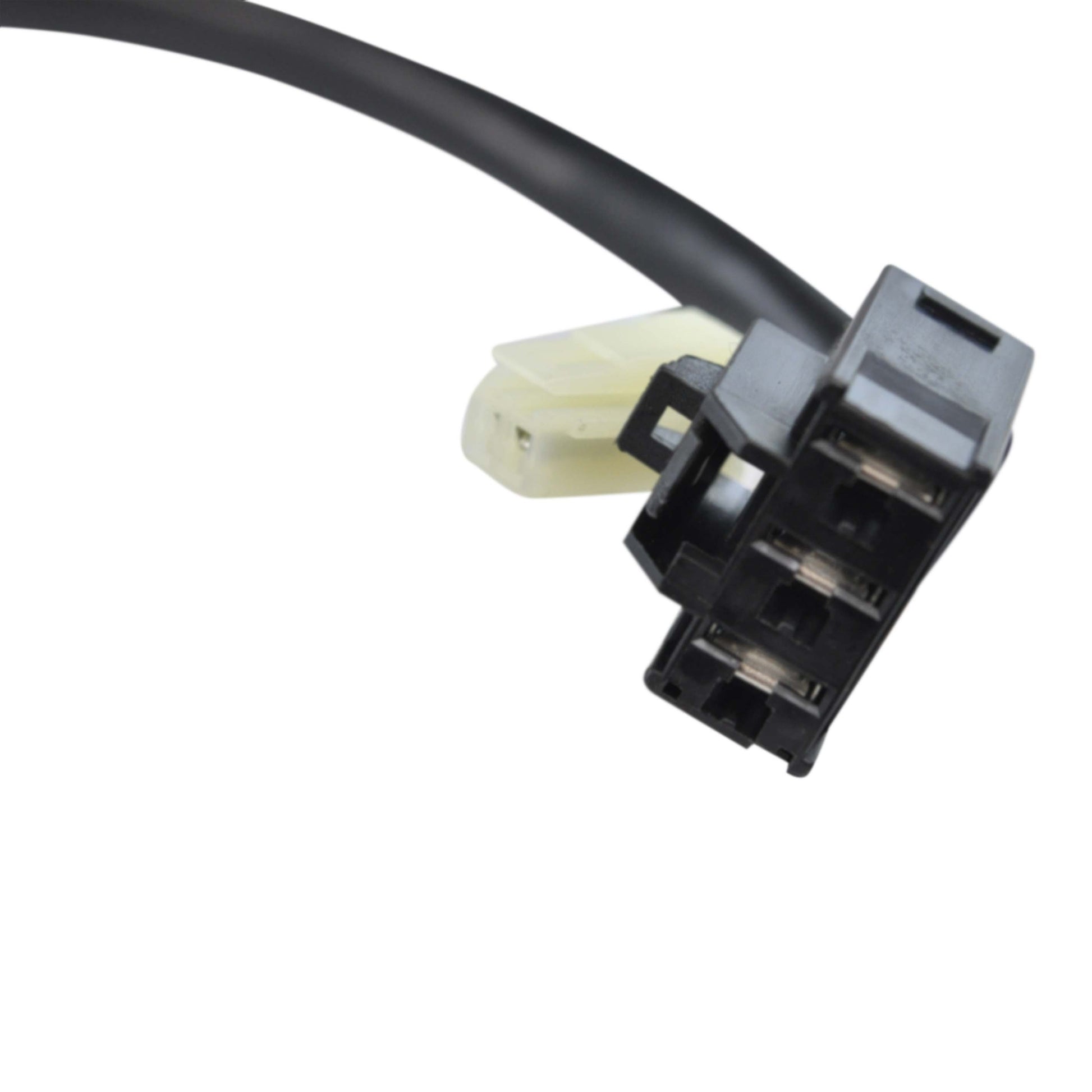

- Connector and rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01275 |
| Interior diameter | 43 mm |
| Exterior diameter | 105 mm |
| Thickness | 22 mm |
| Length of wires stator to grommet | 360 mm |
| Length of wires grommet to plug | 1060 mm |
| Length of wires pickup coil to grommet | 280 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance | 0.4 ohms +/-20% |
| Pickup coil resistance | 563 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha TMAX 500 | 2001-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4B5-81410-00-00 | Yamaha |
| 5VU-81410-02-00 | Yamaha |
| 5GJ-81410-00-00 | Yamaha |
| 5GJ-81410-01-00 | Yamaha |
| 5VU-81410-01-00 | Yamaha |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct fit for the TMAX 500 built between 2001 and 2011, uses the original two plugs and the factory grommet route, and works with all other OEM components including the standard regulator rectifier.
What is included?
The generator stator, the pick-up pulsar coil, the connectors and the rubber grommet. The crankcase cover gasket and fixings are not included.
How do I tell whether my old stator has failed?
Unplug both connectors and measure. The alternator windings should read about 0.4 ohms between phases and the pick-up pulsar coil about 563 ohms, each within plus or minus 20 percent. Any winding that reads open circuit, or that shows continuity to the stator core, has failed. A battery that keeps going flat while the regulator tests good usually points at the stator.
What does 20% more output over stock mean in practice?
The windings are specified to deliver more charging current than the factory unit at the same engine speed, which gives more headroom for accessories and for long periods of low-speed running. It does not require a different regulator rectifier - the standard OEM unit is retained.
