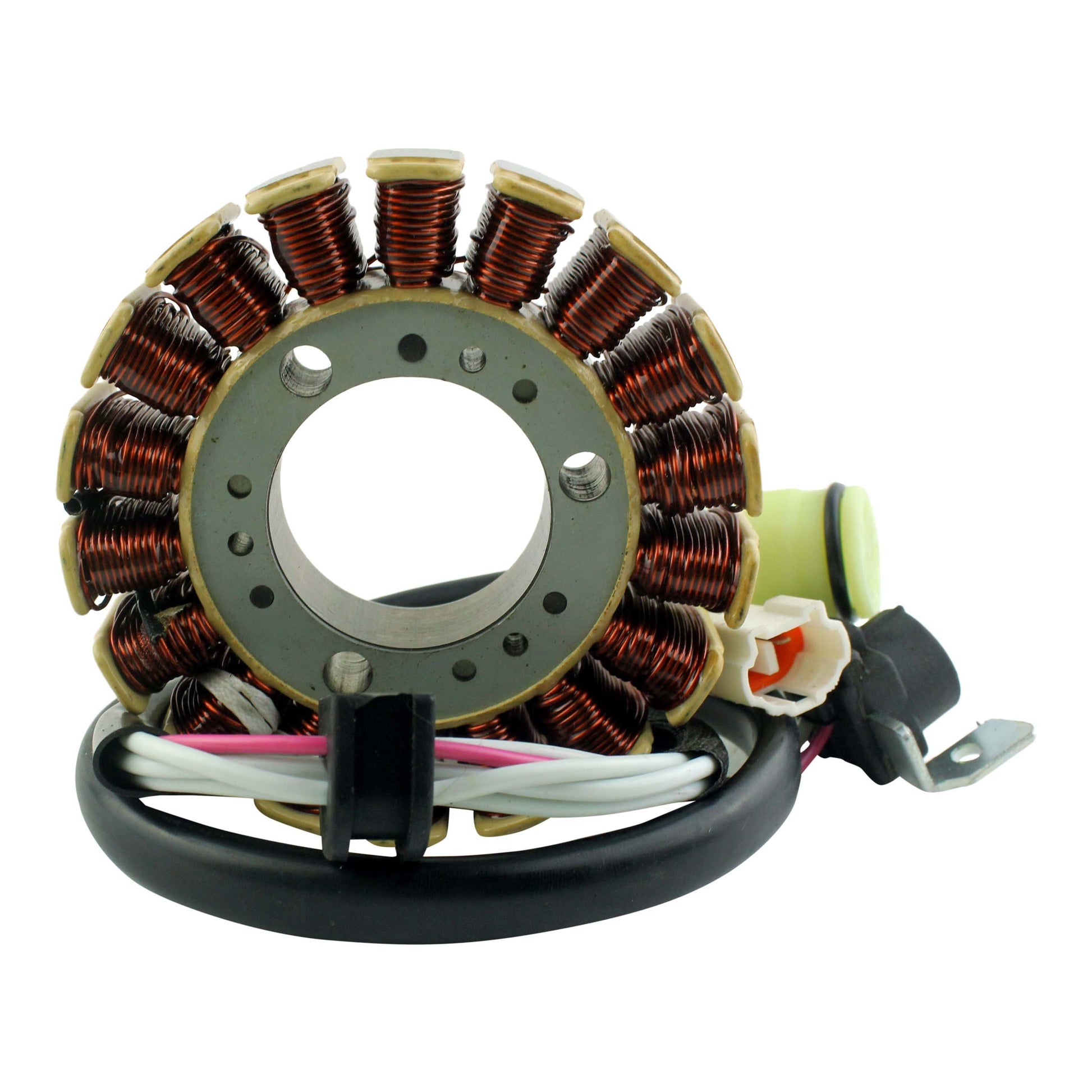

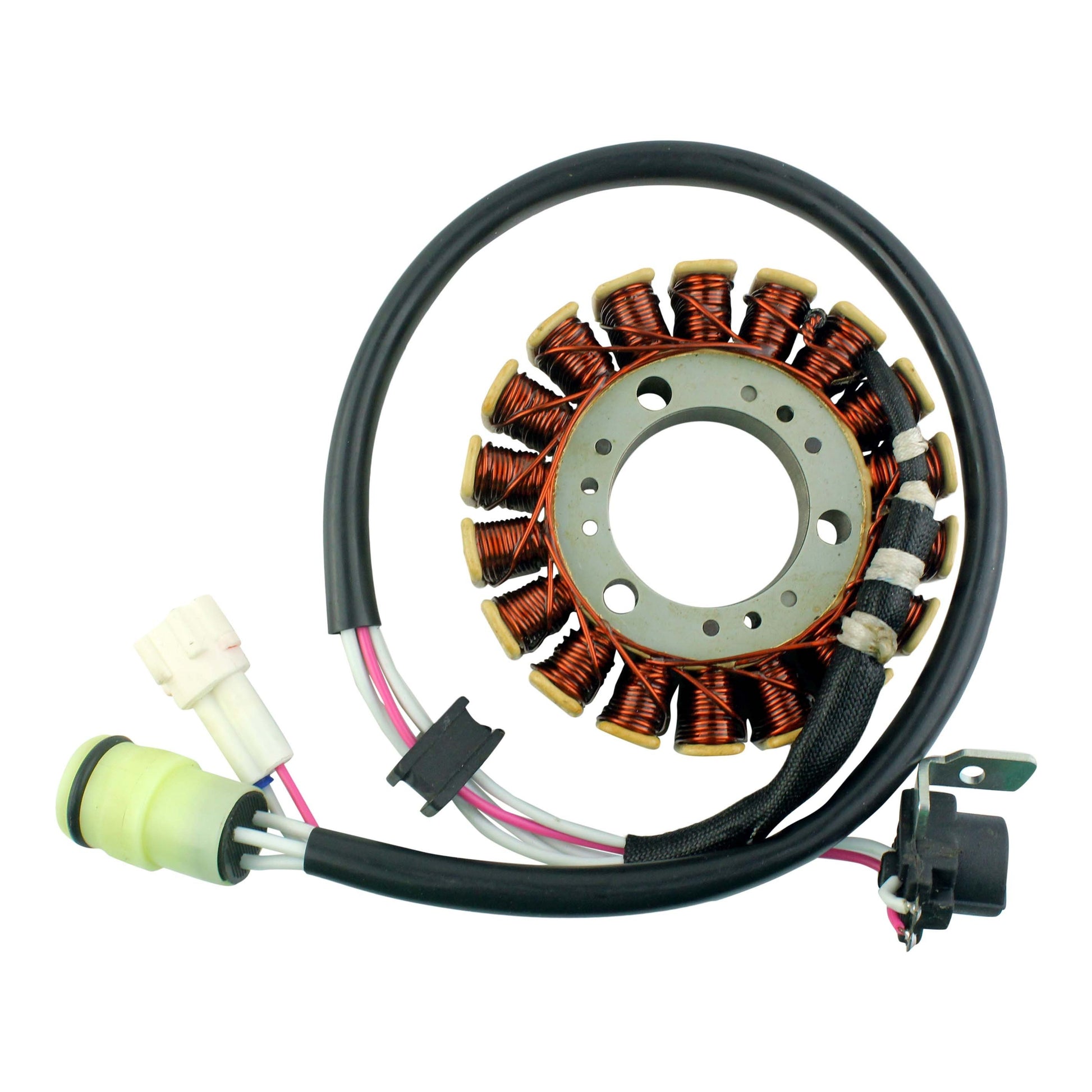

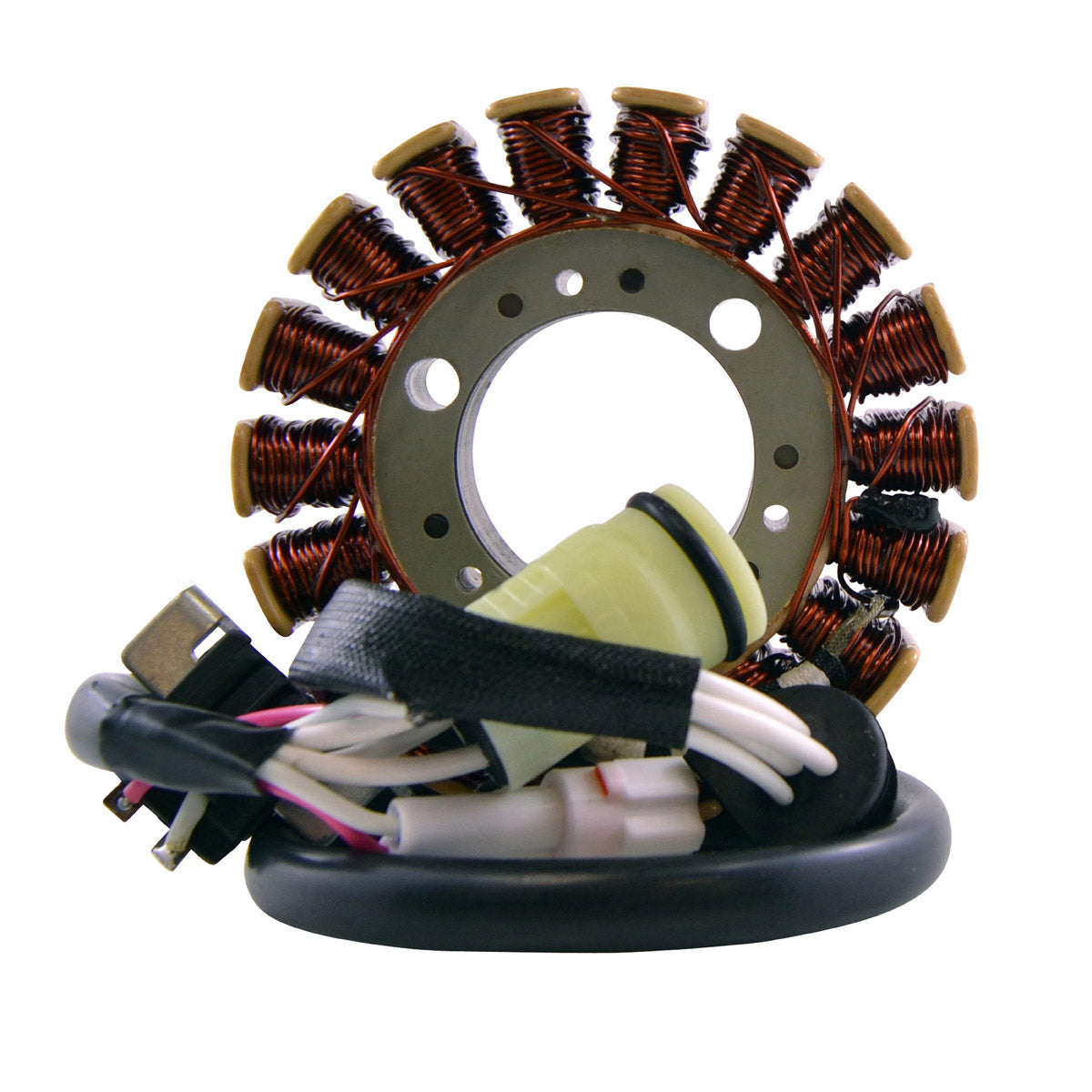

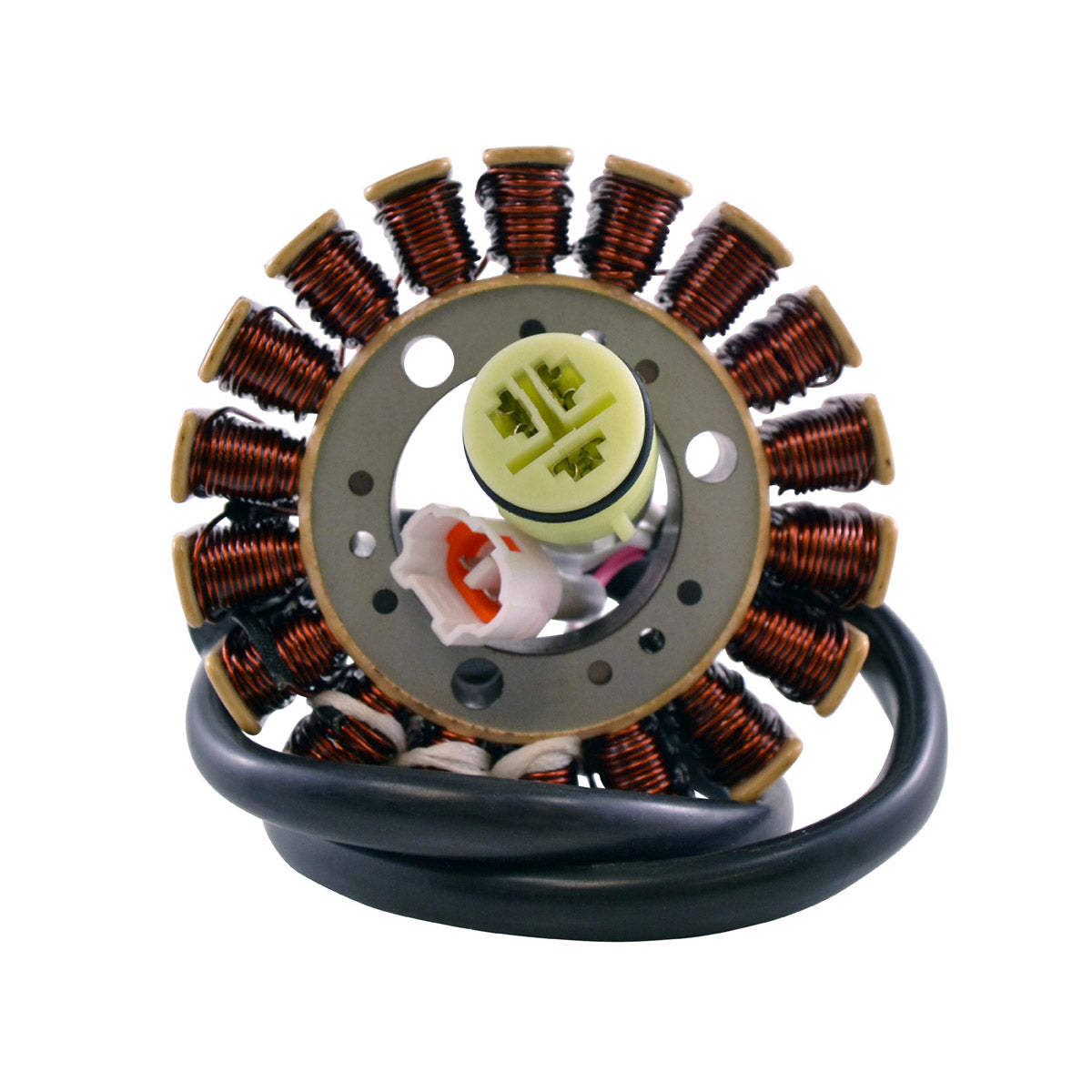

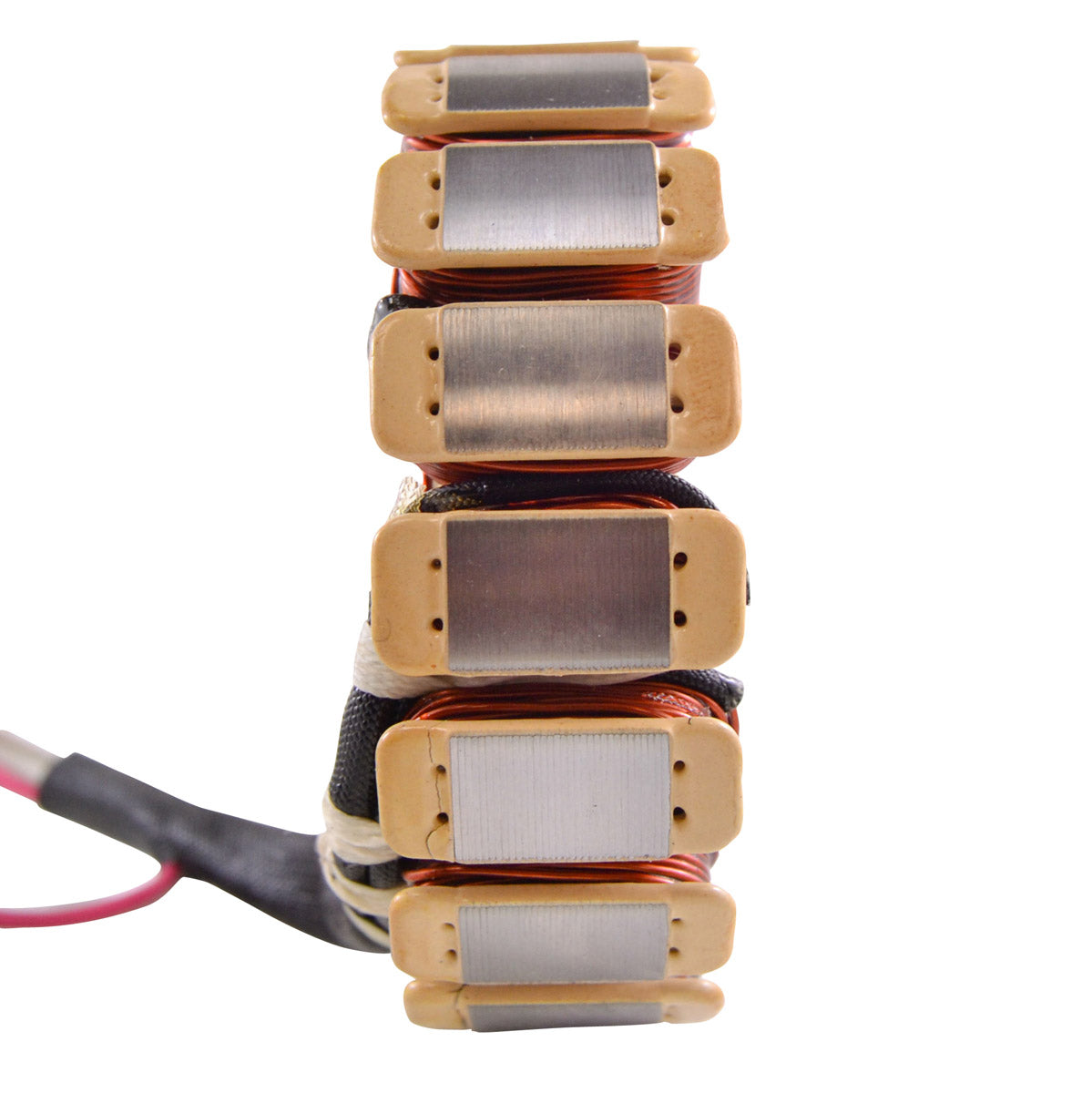

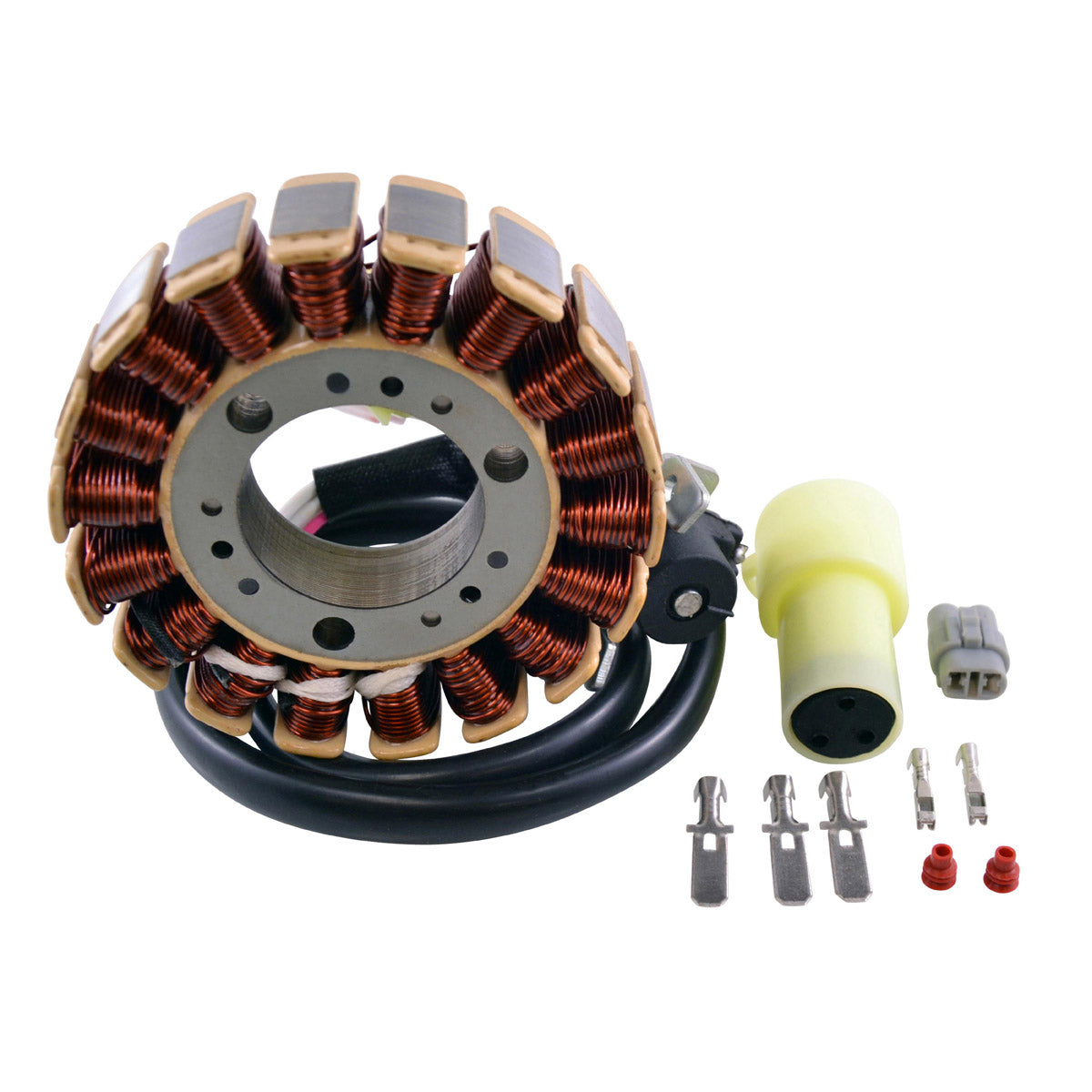

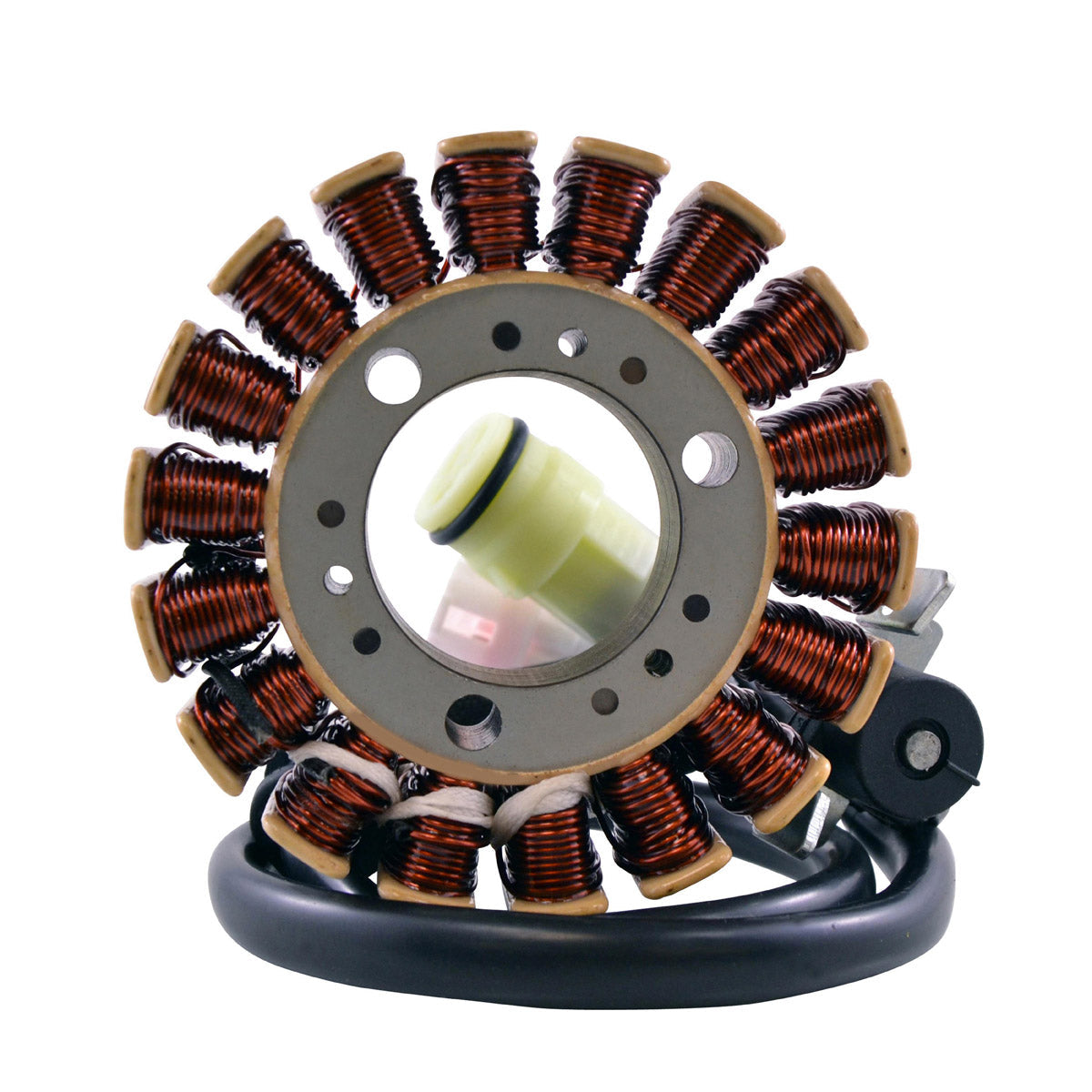

Stator for Yamaha YFM 125 Grizzly 2004-2013
Yamaha YFM 125 Grizzly, 2004 to 2013 - RMSTATOR part RM01419 - replaces OEM 1C5-81410-00-00
This is a brand new generator stator built as a direct replacement for the original charging and ignition unit fitted to the Yamaha YFM 125 Grizzly from 2004 through 2013. The stator lives behind the flywheel and is the source of every amp the machine uses. Its alternator windings feed the regulator rectifier and keep the battery topped up, while the pickup pulsar coil mounted on the same plate reads the flywheel and tells the CDI when to fire. A failure in either half shows up quickly - a flat battery on the charging side, or a no-spark, will-not-start condition on the ignition side.

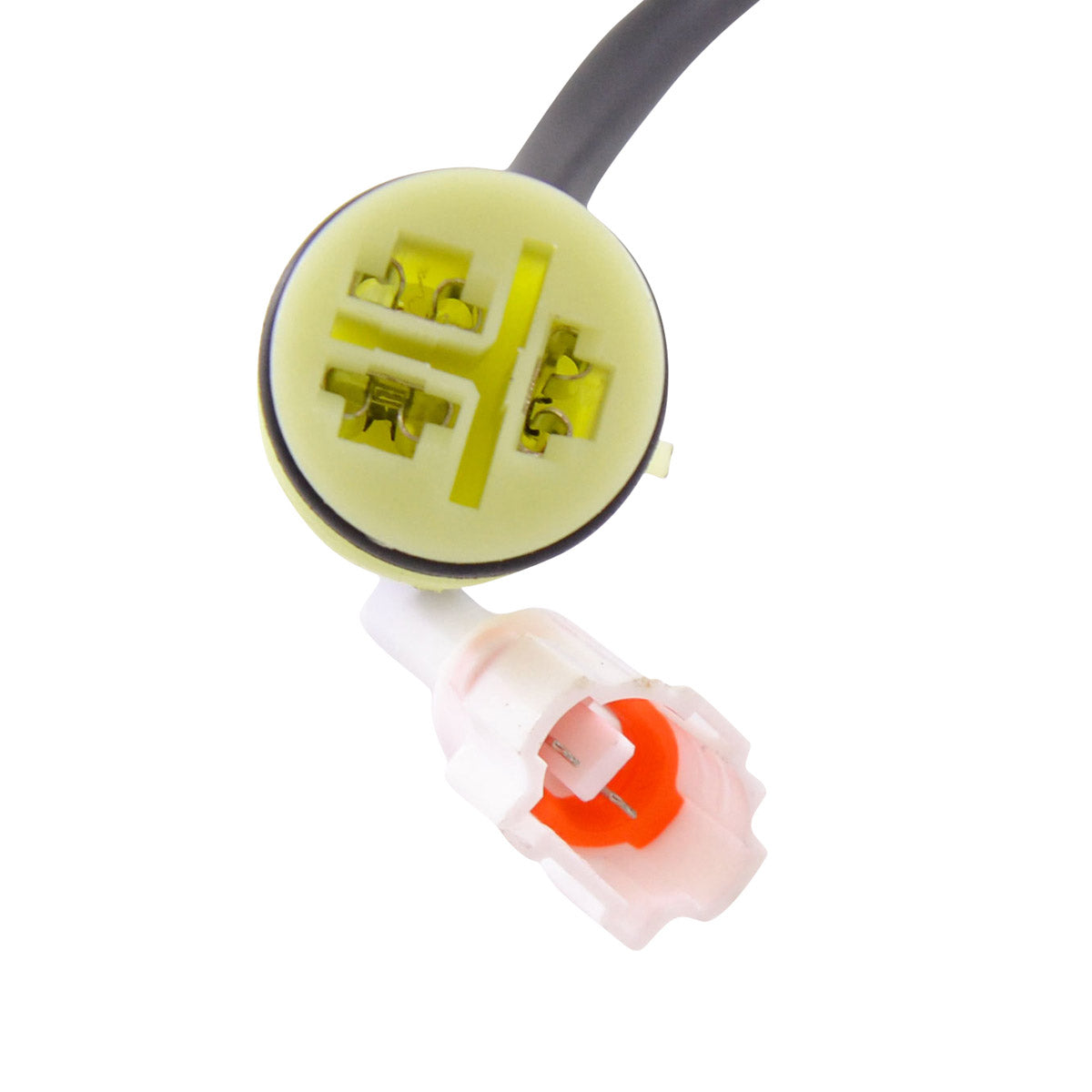

The assembly is plug-and-play and a direct fit: five wires into two plugs, matching the factory connectors, wire lengths and mounting pattern, so no cutting, splicing or modification is required. It uses the highest grade lamination materials and the highest grade copper windings, rated to withstand 200 degrees C - important on a small air-cooled engine where the stator sits close to a hot crankcase. The pickup pulsar coil, the connector and the rubber harness grommet are all supplied, and every unit is tested before it is despatched.
Key Features
- Brand new generator stator - direct replacement for the original unit
- Plug-and-play, direct fit - no cutting, splicing or modification
- Highest grade lamination materials for a stable magnetic core
- Highest grade copper windings, resistant to 200 degrees C
- Pickup pulsar coil supplied on the assembly

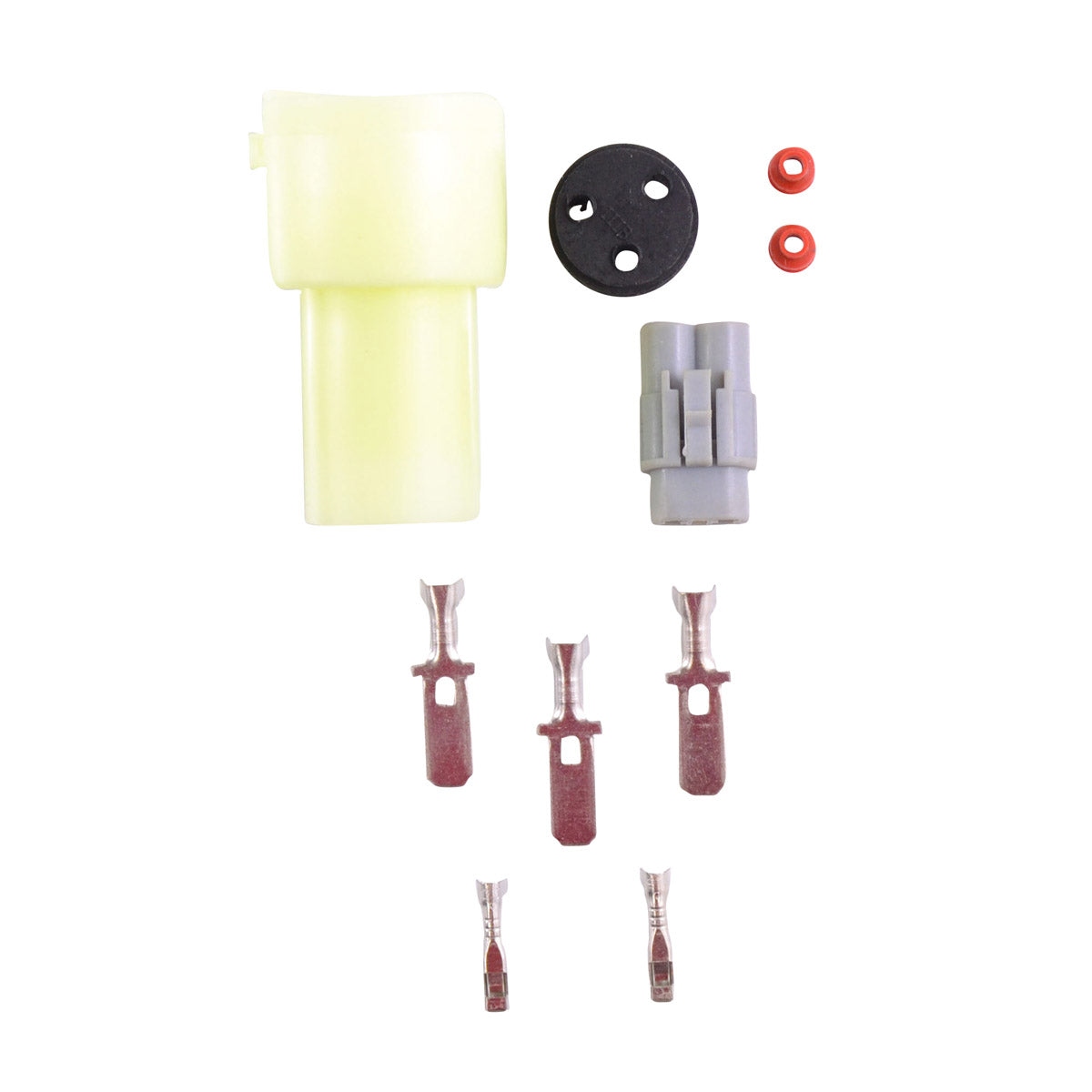

- Connector and rubber grommet included
- Every unit tested before shipment
- Cross references to Yamaha 1C5-81410-00-00
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01419 |
| Interior diameter | 36 mm |
| Exterior diameter | 93 mm |
| Thickness | 18 mm |
| Wire length, stator to grommet | 60 mm |
| Wire length, grommet to plug | 425 mm |
| Pickup coil wire length to grommet | 40 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, White to White | 0.4 ohms +/- 20% |
| Pickup resistance, White to Pink | 290 ohms +/- 20% |
| Temperature rating | 200 degrees C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 125 Grizzly | 2004-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1C5-81410-00-00 | Yamaha |
| RM01419 | RMSTATOR |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit stator for the Yamaha YFM 125 Grizzly from 2004 to 2013. The five wires terminate in the same two plugs as the original and the wire lengths match, so no cutting or splicing is needed. Please still confirm the part number on your existing unit before ordering.
What is included in the box?

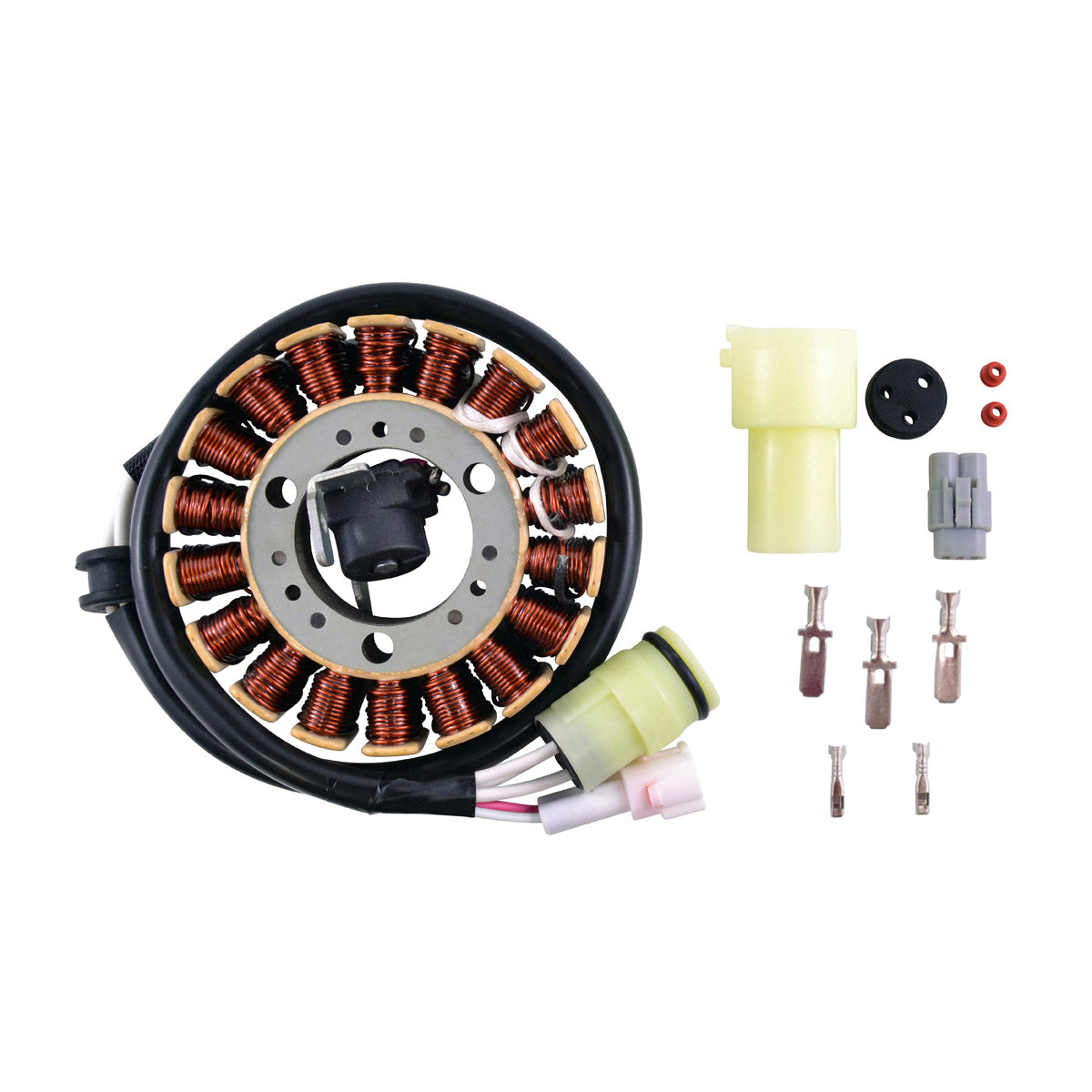

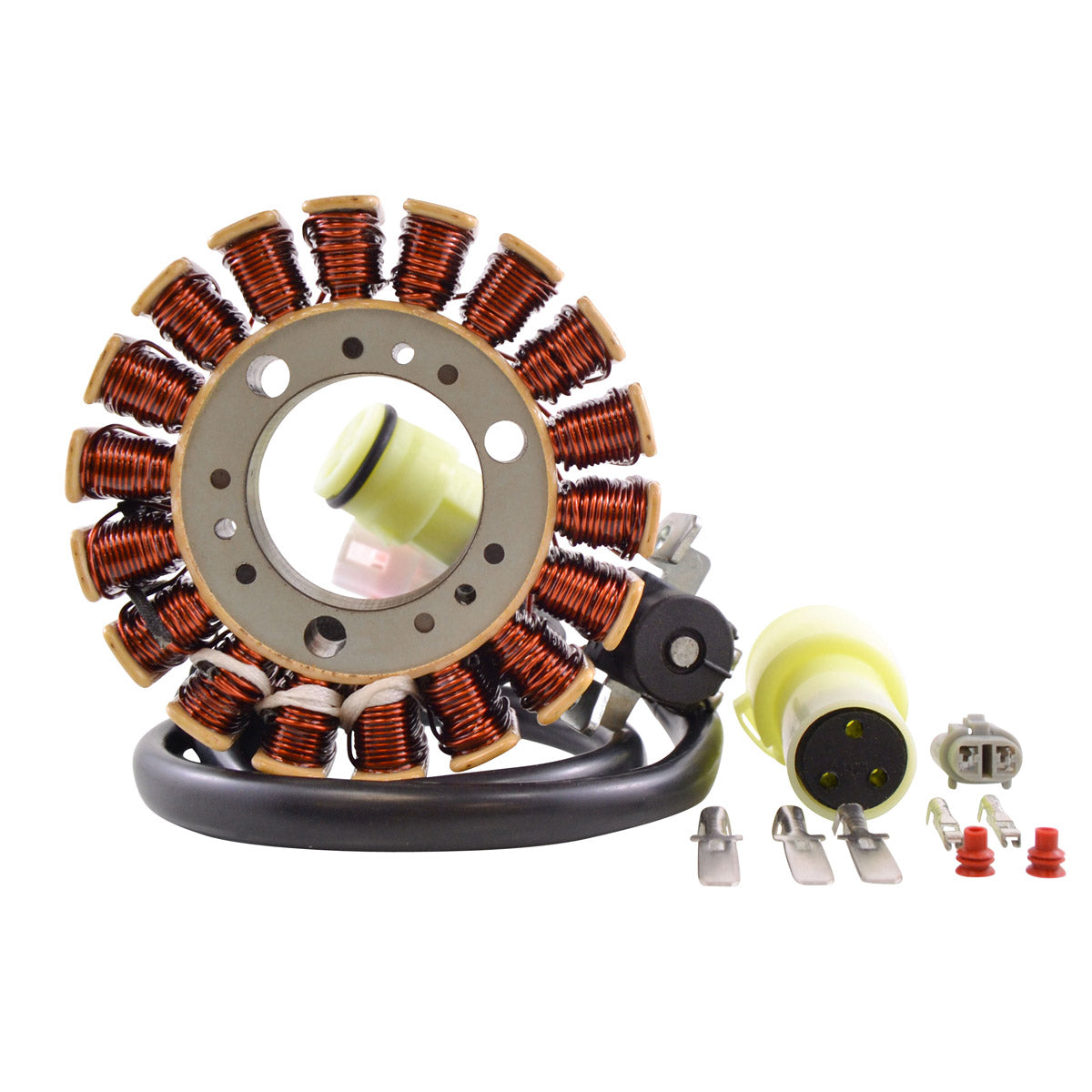

The generator stator, the pickup pulsar coil, the connector and the rubber harness grommet. Every unit is tested before it is shipped.
How do I know my old stator has failed?
A charging fault shows as a battery that will not hold charge and lights that do not brighten with revs; an ignition fault shows as no spark at all. Test with a multimeter: about 0.4 ohms +/- 20% White to White across the alternator windings, and about 290 ohms +/- 20% White to Pink across the pickup. An infinite reading means an open winding, and continuity to the stator body means it has shorted to earth.
Do I need to move the pickup coil over from my old stator?
No. The pickup pulsar coil is supplied with the assembly, with 40 mm of lead from the coil to the grommet, so the complete plate goes on as one piece.
