Stator for Yamaha YFM 450 Grizzly EPS & 4x4 EPS 2011-2014
Yamaha YFM 450 Grizzly EPS and 4x4 EPS, 2011 to 2014 - RMSTATOR part RM01422 - replaces OEM 1CT-81410-00-00

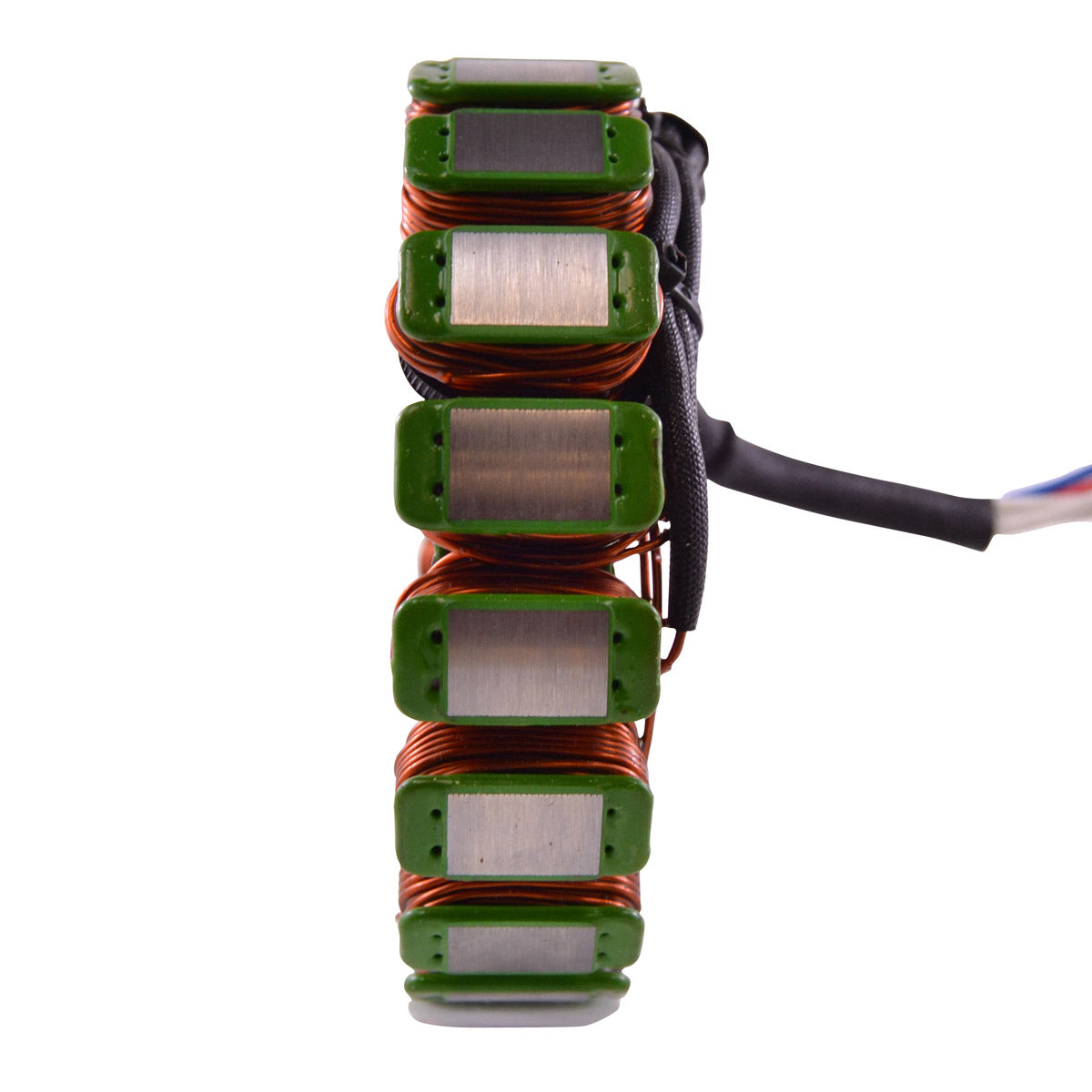

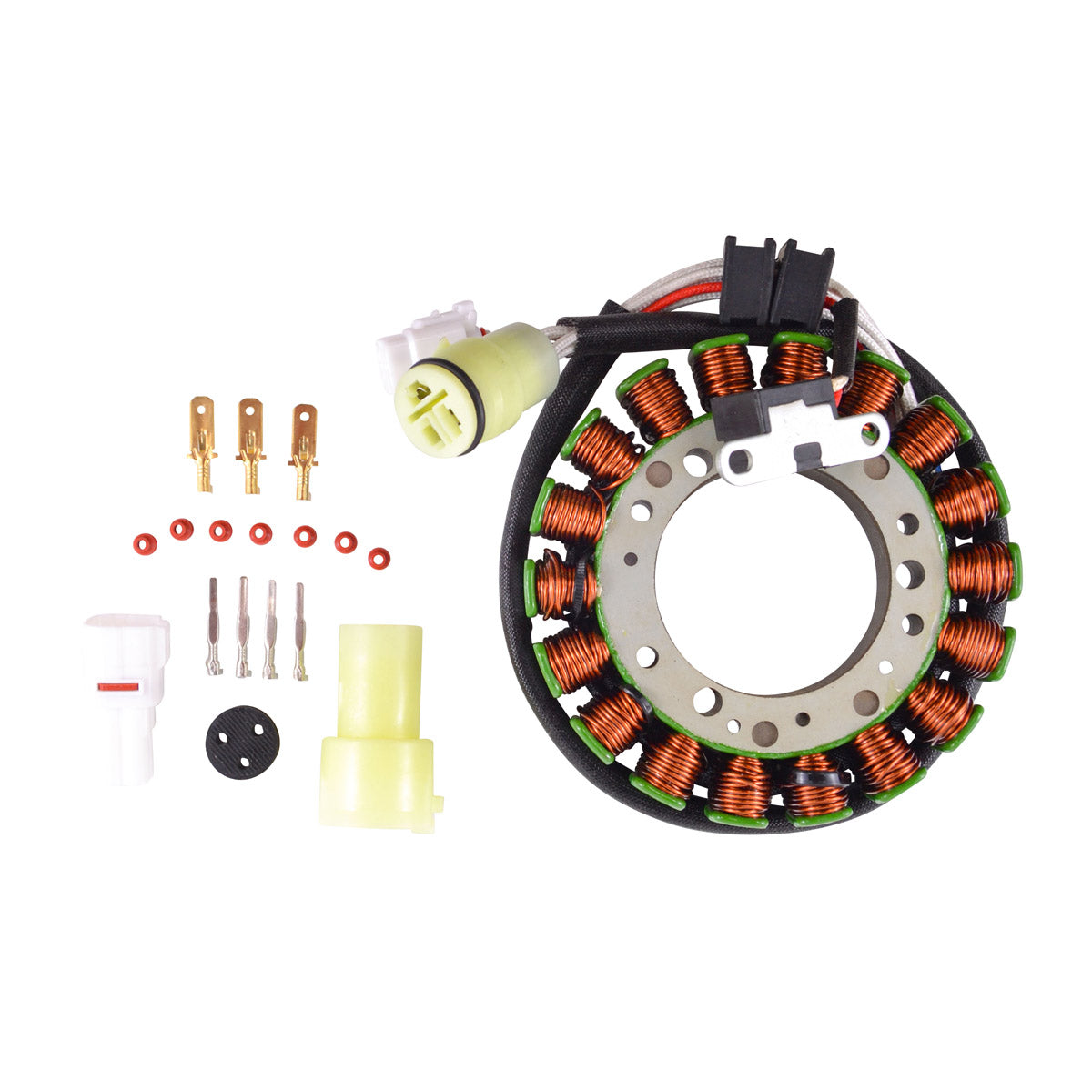

This is a brand new generator stator built as a direct replacement for the original unit fitted to the Yamaha YFM 450 Grizzly EPS and Grizzly 4x4 EPS from 2011 to 2014. On an EPS machine the charging system has to do more work than on a base model - the electric power steering unit draws current continuously - so a tired stator is felt sooner here than on a machine without it. The alternator windings supply the regulator rectifier and the battery, the pickup coil times the ignition, and a separate source winding feeds the ignition circuit.
The assembly is plug-and-play and a direct fit: seven wires into two plugs, matching the factory connectors, wire lengths and mounting pattern, so no cutting, splicing or modification is required. It is built on the highest grade lamination stack and wound with the highest grade copper, rated to withstand 200 degrees C. The pickup pulsar coil comes pre-assembled on the plate, and a connector and rubber harness grommet are supplied so the installation can be completed without reusing perished originals. Every unit is bench tested before shipment.
Key Features
- Brand new generator stator - direct replacement for the original unit
- Plug-and-play, direct fit - no cutting, splicing or modification

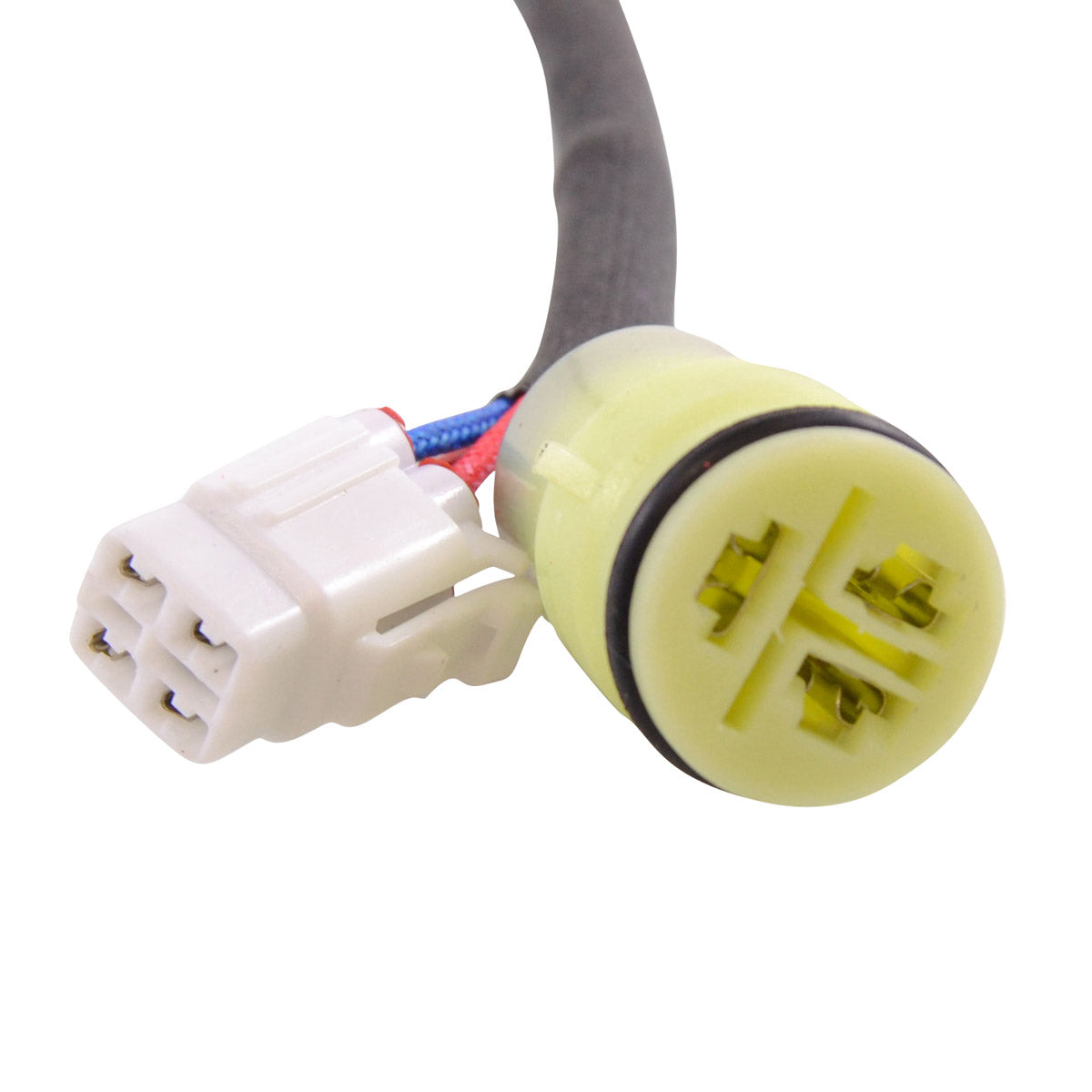

- Seven-wire, two-plug layout matching the factory harness
- Separate source winding as well as alternator and pickup circuits
- Highest grade lamination materials and copper windings
- Windings resistant to 200 degrees C
- Pickup pulsar coil supplied pre-assembled

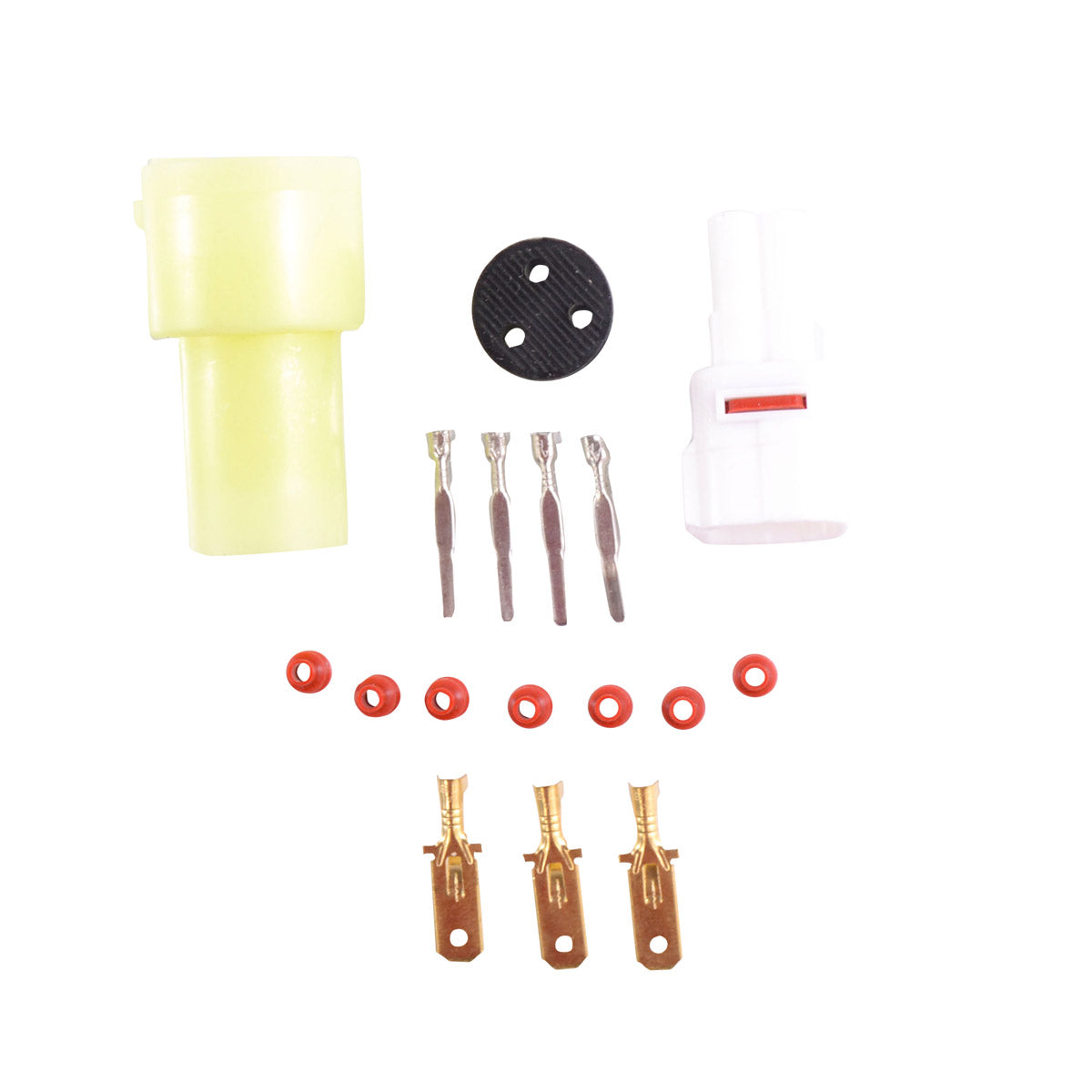

- Connector and rubber grommet included
- Every unit tested before shipment
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01422 |
| Interior diameter | 53 mm |
| Exterior diameter | 115 mm |
| Thickness | 17 mm |
| Wire length, stator to grommet | 100 mm |
| Wire length, grommet to plug | 330 mm |
| Pickup coil wire length to grommet | 50 mm |
| Number of wires | 7 |
| Number of plugs | 2 |
| Number of pins | 7 |
| Alternator resistance, White to White | 0.4 ohms +/- 20% |
| Pickup resistance, Red to White | 500 ohms +/- 20% |
| Source resistance, Red to Blue | 0.2 ohms +/- 20% |
| Temperature rating | 200 degrees C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha YFM 450 Grizzly EPS | 2011-2014 |
| Yamaha YFM 450 Grizzly 4x4 EPS | 2011-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 1CT-81410-00-00 | Yamaha |
| RM01422 | RMSTATOR |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit stator for the Yamaha YFM 450 Grizzly EPS and 4x4 EPS from 2011 to 2014. The seven wires terminate in the same two plugs as the original, with matching lead lengths, so no cutting or splicing is required. Please still confirm the number on your existing unit before ordering.
What is included in the box?
The generator stator with the pickup pulsar coil already assembled to it, plus a connector and a rubber harness grommet. Every unit is tested before it is shipped.
How do I know my old stator has failed?
Look for a battery that will not stay charged, power steering that cuts in and out or warns at low revs, or a no-spark condition. Confirm with a multimeter: about 0.4 ohms +/- 20% White to White on the alternator windings, about 500 ohms +/- 20% Red to White on the pickup, and about 0.2 ohms +/- 20% Red to Blue on the source winding. Any circuit reading open, or showing continuity to the stator body, has failed.
Does it suit both the EPS and the 4x4 EPS Grizzly 450?
Yes, both the YFM 450 Grizzly EPS and the YFM 450 Grizzly 4x4 EPS between 2011 and 2014 use this stator, which replaces Yamaha part 1CT-81410-00-00.
